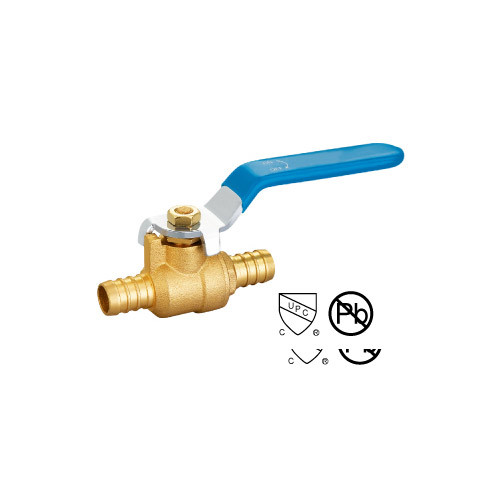

high quality Plain Or Bronze Coating Pex X 3/8"-1" Pex Ball Valve With Drain 600WOG brass

Brand Name : MB

Model Number : LT-172 Pex X Pex

Place of Origin : China

MOQ : 100

Payment Terms : T/T

Supply Ability : 50000 Piece/Pieces per Month

Delivery Time : 5-10 DAYS

Media : Water,Gas,Oil

Material : Brass

Structure : Ball

Application : General

Power : Manual

Product name : Brass Ball Valve

Medium : Water Oil Gas

Standard : ANSI

Body Style : 2-Piece

Handle Finish : Chrome Plated

Port : Ningbo/shanghai

Matetrial : Brass

Color : Yellow

Seal : PTFE

Head Code : Round

Accept : OEM

Sureface : nickel

Connection End : Thread

Body Material : Brass

Handle Type : Lever

Temperature : 200°F

Lead Time : 21 days

Contact Now

Pex X Pex brass ball valve brass valve Plain or Bronze Coating WOG used for pipe connection manually operation

Model NO.: LT-172 Pex X Pex

Forged Two-Piece Body • STD Port 1/2* -1″(600WOG, 150WSP)

Meets MSS SP-110 Specification Note: Plain or Bronze Coating

high quality Plain Or Bronze Coating Pex X 3/8"-1" Pex Ball Valve With Drain 600WOG brass

MATERIAL LIST
PART	SPECIFICATION
Handle	Steel With Chrome Or Zinc Alloy
Nut	Brass ASTM B124-C37700
Stem	BraSS ASTM B124-C37700 Or ASTM B16-C36000
Packing	°(PTFE)
Seats	°(PTFE)
0-ring	NBR
Ball	Brass ASTM B124-C37700 0Г ASTMB16-C36000 with hard Chrome plating
Body & Cap	Brass (ASTM B124-C37700)
Gland	Brass (ASTM B124-C37700)
Retaining Ring	Brass (ASTM B124-C37700)

DIMENSIONS
Model	3/8"	1/2′	3/4″	1''
Size	3/8"	1/2′	3/4″	1''
φD	6	9.3	13.6	18.3
L	62.5	62	71	84
H(ref)	35.5	35.5	41	46.5
A(ref)	84.5	84.5	84.5	101
Weight(G)	105	117	192	304
